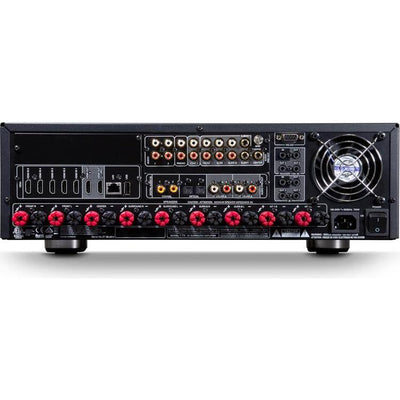

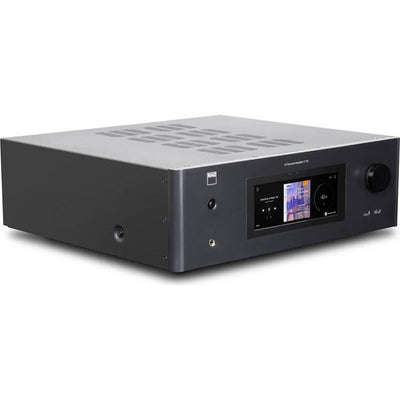

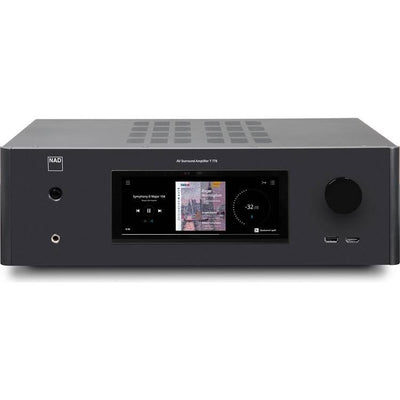

NAD T 778 9.2-channel home theater receiver with Wi-Fi, BluOS, Bluetooth, Apple AirPlay 2 and Dolby Atmos
Item #: NAD-T-778
$4,499.00
Leaves Warehouse within 2-3 Weeks
Free Shipping
T 758 V3i A/V Surround Sound Receiver
NAD’s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand’s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.
Introducing the T 778 A/V Surround Amplifier
Specifications
Amplifier
- FTC
- 8 Ohms - 140W (21.5dBW)
- 4 Ohms - 170W (22.3dBW)
- Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion) - 9 x 85W
- IHF Dynamic Power
- 8 Ohms - 165W (22.2dBW)
- 4 Ohms - 280W (24.5dBW)
- Total harmonic distortion at rated power - <0.08%
- IM distortion at 1/3 rated power - <0.03%
- Damping factor - >300 (20Hz-1kHz, 8 ohms)
- Input sensitivity and impedance - 1.12Vrms (ref. 8 Ohms, VOL at 0dB)
- Frequency response - +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
- Signal/noise ratio - >100dB (ref. rated power at 8 Ohms, A-Weighted)
- Signal/noise ratio - >85dB (ref. 1W at 8 Ohms, A-Weighted)
Preamplifier
- LINE INPUT
- Frequency response - ±0.3dB (ref. 20Hz – 20kHz)
- Signal-to-noise ratio - >100dB (ref. 2V, A-Weighted)
- Total harmonic distortion - <0.01%
- Input sensitivity - 245mVrms (ref. 2V)
- Maximum output level - >4.5Vrms
- PHONO INPUT
- Input Sensitivity - 6.2mVrms (ref. 2V)(ref. 20Hz – 20kHz)
- Signal-to-noise ratio - >80dB (ref. 2V, A-Weighted)
- Maximum Input Level - >90mVrms (1kHz)
Power Consumption
- Standby power
- <0.5W (full standby)
- <8W (network standby)
Dimension and Weight
- Unit Dimensions (W x H x D) - 435 x 140 x 430mm (Gross)* | 17 3/16 x 5 9/16 x 16 15/16″**
- Net Weight - 12.1kg (26.7lb)
- Shipping Weight - 15.5kg (34.2lb)
*Gross dimensions include feet, extended buttons and rear panel terminals.
**Non-metric measurements are approximate.
