NAD Masters Series M33 Stereo integrated amplifier with HDMI, built-in BluOS streaming, Apple AirPlay 2 and Bluetooth
Item #: NAD-M33
$6,499.00
Leaves Warehouse within 4-6 Weeks
Free Shipping
M33 BluOS® Streaming DAC Amplifier
In its simplest form, the M33 BluOS™ enabled DAC/amplifier is an ultra-high-performance streaming amplifier with superb audiophile sound. As a BluOS enabled component, the M33 can be combined with other players in a BluOS ecosystem of wirelessly networked music players throughout the home for an outstanding whole-home audio system. With the employment of the new Purifi Eigentakt™ Hybrid Digital amplifier technology, the M33 follows NAD’s long-standing tradition in identifying and developing cutting-edge amplification technology. With a minimum of 200W per channel on tap, the result is lifelike performance, exemplified by ultra-low distortion and noise.

BluOS High-Res Music Streaming
OVERALL SPECIFICATIONS
AMPLIFIER SECTION
- Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven) ->200 W into 8 ohms >380 W into 4 ohms
- Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD) - >700 W into 8 ohms
- Input sensitivity - 865 mV (ref. 200W 8 ohms, Volume maximum)
- THD (20 Hz – 20 kHz) - <0.003 % (1W to 200 W, 8 ohms and 4 ohms)
- Signal-to-Noise ratio
- >98 dB (A-weighted, ref. 1 W out in 8 ohms)
- >120 dB (A-weighted, ref. 200 W out in 8 ohms)
- Clipping power - >210 W (0.1 % THD 1 kHz 8 ohms)
- IHF dynamic power
- 8 ohms: 260 W
- 4 ohms: 520 W
- Peak output current - ≥25 A (in 1 ohm, 1 ms)
- Damping factor - >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
- Frequency response
- ±0.2 dB (20 Hz -20 kHz)
- -3 dB at 60 kHz
PREAMPLIFIER SPECIFICATIONS
LINE IN
- Input Impedance (r and c) - 47kΩ/180pF
- Input Sensitivity - 280mV (ref. 500mV out, Volume Maximum)
- Maximum input level 20Hz-20Khz - 2 Vrms/8 Vrms (low sensitivity mode)
- Tone Controls - Treble: ±6 dB at 10kHz Bass: ±6 dB at 100Hz
- Max Output Signal - 4Vrms (ref. 0.1% THD)
PREOUT
- Maximum output level - 3.9 Vrms (ref. 0.1% THD)
- Signal-to-Noise ratio - >120 dB (A-weighted, ref. 2 V out)
- Output impedance - 100 ohms
SUBOUT
- Maximum output level - 1.1 Vrms (ref. 0.1 % THD 100Hz)
- Signal-to-Noise ratio - >102 dB (20 Hz-20 kHz, ref. 1V out)
- THD+N - <0.005 % (refer 1.1 V 20 Hz-200 Hz)
- Output impedance - 680 ohms
PHONO
- Input sensitivity
- MM: 1.2 mV
- MC: 100 µV
- Input impedance (R and C)
- MM: 56 kohms/100 pF
- MC: 100 ohms/280 pF
- Signal to noise ratio (ref. 2 V Preout A-weighted)
- MM: >92 dB
- MC: >76 dB
- THD+N (ref 2V Preout 1kHz)
- MM: <0.003 %
- MC: <0.02 %
- RIAA response accuracy MM/MC - ±0.2 dB 20 Hz -20 kHz
HEADPHONES
- Output Impedance - 2.2ohms
- Output power - >100 mW/32 ohms
BluOS SECTION
AUDIO
- Supported audio file format* - MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
- Supported high- resolution audio file format* - FLAC, MQA, WAV, AIFF
- Sampling rate - up to 192 kHz
- Bit depths - 16 – 24
CONNECTIVITY
- Network connectivity
- Gigabit Ethernet RJ45
- Wi-Fi 5
- Supported network file share protocol - Server Message Block (SMB)
- USB - 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
- Bluetooth quality - Support for aptX® HD
- Bluetooth connectivity - Two-Way (Receive and Headphone modes)
USER INTERFACE
- Supported operating system** - Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions**
- Mobile Application - Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops

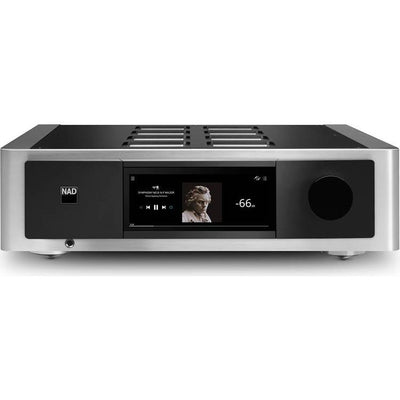

- Front panel - 7-inch full color touch screen

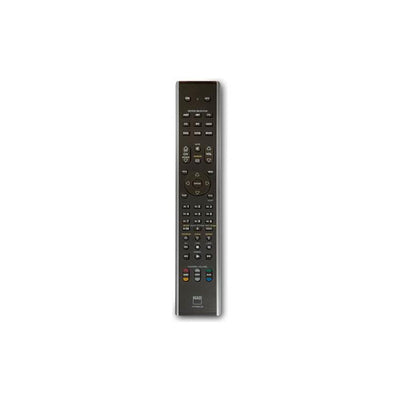

- Remote control - HTRM 2 remote control
POWER CONSUMPTION
- Auto Standby ON - <0.5W
- Idle Power - <40W
DIMENSIONS AND WEIGHT
- Dimensions WxHxD ** - 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8 ”)
- Net Weight - 9.7kg (21.4lb)
- Shipping Weight - 18.4kg (40.6 lb)
- Shipping Size (W x H x D) - 569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32 ”)
NOTE
* – Supported audio file format, cloud services and free internet radio are subject to change without notice.
** – Dimensions includes feet, volume knob and extended rear panel terminals
DOWNLOADS
DATA SHEET
MANUAL
FIRMWARE
To download a copy of the firmware for your NAD unit, please contact support
Control Integration
CONTROL 4
CRESTRON
URC
RTI
LUTRON
NICE
GIRA
OTHER
Specs
Item #: NAD-M33
Manufacturer Part #: M33
