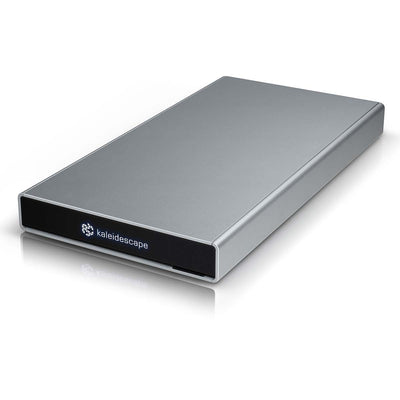

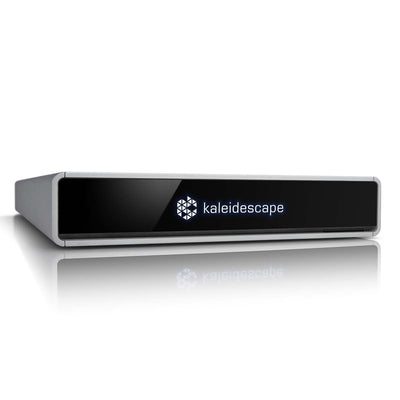

Kaleidescape Compact Terra Prime Movie Server (SSD) 8TB Storage For Home Theaters

Item #: KSCAPE-K0114-0008-SSD

$6,995.00

Leaves Warehouse within 5-10 Business Days

Free Shipping

Overview

Terra Prime Solid-State Movie Server

Terra Prime Solid-State is the fastest and quietest movie server available, the ideal choice for marine and state-of-the-art installations.

  • Next-generation movie server with ultimate performance
  • 2.5 Gigabit Ethernet
  • Data center grade solid-state drives
  • Low power, quiet operation
  • Storage options for approximately 500 (31TB) or 125 (8TB) 4K movies
  • Downloads a Kaleidescape high-bitrate 4K movie in as little as four minutes
  • Distributes up to 25 simultaneous playback streams
  • Movies can be downloaded on up to five systems; perfect for multiple residences and yachts
  • Custom rack mounts sold separately

    The new Terra Prime Solid-State is the only dedicated movie server with 2.5 Gigabit Ethernet and data center grade solid-state drives, enabling the fastest downloads and the most simultaneous movie playbacks.

    Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance that other solutions can’t guarantee.

    Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

    Terra Prime Solid-State movie servers can download a Kaleidescape high-bitrate 4K movie in as little as four minutes, with properly configured 2.5 Gbit/sec capable networking, hardware, and ISP

    TECHNICAL DETAILS AND SPECIFICATIONS

    SHARED SPECIFICATIONS

    FULL SIZE: 31 TB

    COMPACT: 8 TB

    MOVIE SERVER

    • Downloads Kaleidescape high-bitrate 4K movies in as little as 4 minutes
    • Serves up to 25 simultaneous playbacks of Kaleidescape high-bitrate 4K movies

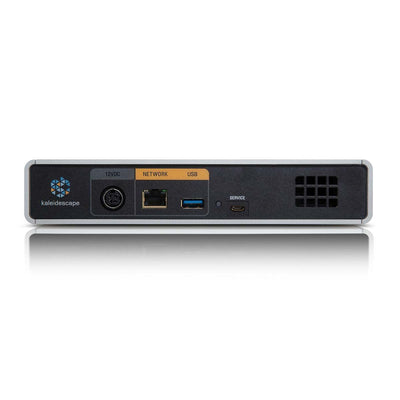

    NETWORK

    • 2.5 Gigabit Ethernet (recommended)
    • 1 Gigabit Ethernet (minimum)

    OTHER CONNECTION

    • USB 3.0 (reserved)

    ENVIRONMENT

    • Operating: 41 to 95°F (5 to 35°C)
    • Storage: -4 to 140°F (-20 to 60°C)
    • Relative humidity:
      • 20 to 80% (operation)
      • 5 to 90% (storage)
    • Maximum operating altitude: 10,000ft (3,048m)

    VENTILATION

    • Airflow:
      • Full Size - 10 CFM (17 m3/hr) max
      • Compact - 5 CFM (8.4 m3/hr) max
    • Minimum 1in (2.5cm) space at the front
    • Minimum 2in (5cm) space at the rear

    CERTIFICATIONS

    • CSA 62368-1
    • IEC 62368-1
    • FCC CLASS B
    • CE
    • RoHS Compliant

    DIMENSIONS

    • 17.0×3.5×10.0in (W×H×D) (43.2×8.9×25.4cm)

    WEIGHT

    • 19.8lb (9.0kg) with four solid-state drives + heat sink cartridges installed

    FAN AND DRIVE NOISE

    • Typical: 21 dB(A)

    POWER

    • Max consumption: 48W
    • Typical: 43W
    • External power adapter:
      • 2.6×1.4×6.5in (6.6×3.5×16.5cm)
      • 150W with detachable line cord
      • 100-240V, 50-60Hz universal input
      • 12VDC @ 12.5A

    STORAGE

    • Four removable 7.68 TB solid-state TLC flash drives (30.72 TB total)
    • Stores ~500 Kaleidescape high-bitrate 4K movies, ~800 HD movies, or ~4,600 SD movies

    RACK MOUNT (sold separately)

    • Rack shelf available for mounting one unit in a 19in rack, 2RU space

    DIMENSIONS

    • 7.87×1.52×14.33in (W×H×D)(20.0×3.9×36.4cm)

    WEIGHT

    • 6.6lbs (3.0kg)

    FAN AND DRIVE NOISE

    • Typical: 17 dB(A)

    POWER

    • Max consumption: 22W
    • Typical: 16W
    • External power adapter:
      • 2.6×1.4×6.5in (6.6×3.5×16.5cm)
      • 150W with detachable line cord
      • 100-240V, 50-60Hz universal input
      • 12VDC @ 12.5A

    STORAGE

    • One integrated 7.68 TB solid-state TLC flash drive
    • Stores ~125 Kaleidescape high-bitrate 4K movies, ~200 HD movies, or ~1,150 SD movies

    RACK MOUNT (sold separately)

    • Rack shelf available for mounting one or two units in a 19in rack, 1RU space
