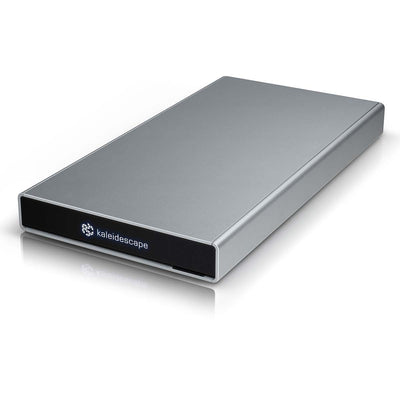

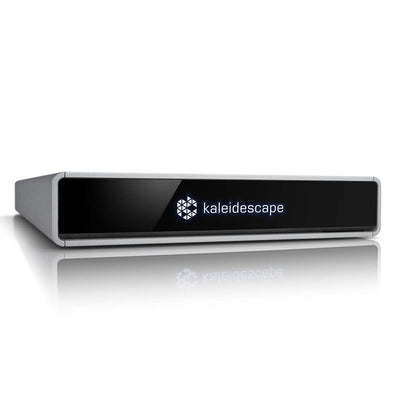

Kaleidescape Compact Terra Prime Movie Server 8TB Storage For Home Theaters

Item #: KSCAPE-K0114-0008

$4,995.00

Discontinued

Free Shipping

Overview

Terra Prime Movie Server

Terra Prime movie servers feature an all-new board design, faster processing power, and a faster network.

  • Next-generation movie server with high capacity
  • 2.5 Gigabit Ethernet
  • Enterprise-class hard disk drives
  • Storage options for approximately 1,600 (96TB), 1,200 (72TB), 800 (48TB), 400 (24TB), or 130 (8TB) 4K movies
  • Downloads a Kaleidescape high-bitrate 4K movie in as little as eight minutes
  • Distributes up to five simultaneous playback streams (compact)
  • Distributes up to 10 simultaneous playback streams (full-size)
  • Movies can be downloaded on up to five systems; perfect for multiple residences
  • Custom rack mounts sold separately

Terra Prime stores movies, TV series, and concerts on an array of enterprise-class hard drives. Content stored on the movie server are played back on Strato players.

Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance.

Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

Terra Prime movie servers can download a Kaleidescape high-bitrate 4K movie in as little as eight minutes, with properly configured 2.5 Gbit/sec capable networking, hardware, and ISP.

TECHNICAL DETAILS AND SPECIFICATIONS

SHARED SPECIFICATIONS

FULL SIZE: 96, 72 & 48 TB

COMPACT: 24 & 8 TB

MOVIE SERVER

  • Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes
  • Compact serves up to 5 simultaneous playbacks of Kaleidescape 4K movies
  • Full-size serves up to 10 simultaneous playbacks of Kaleidescape 4K movies

NETWORK

  • 2.5 Gigabit Ethernet (recommended)
  • 1 Gigabit Ethernet (minimum)

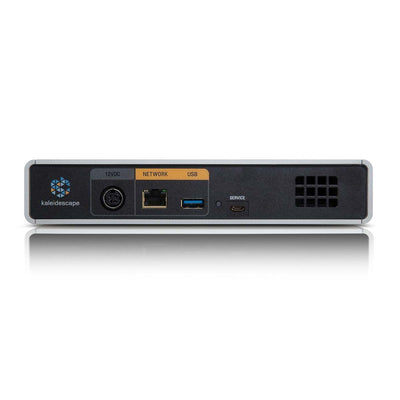

OTHER CONNECTION

  • USB 3.0 (reserved)

ENVIRONMENT

  • Operating: 41 to 95°F (5 to 35°C)
  • Storage: -4 to 140°F (-20 to 60°C)
  • Relative humidity:
    • 20 to 80% (operation)
    • 5 to 90% (storage)
  • Maximum operating altitude: 10,000ft (3,048m)

VENTILATION

  • Airflow:
    • Full Size - 10 CFM (17 m3/hr) max
    • Compact - 5 CFM (8.4 m3/hr) max
  • Minimum 1in (2.5cm) space at the front
  • Minimum 2in (5cm) space at the rear

CERTIFICATIONS

  • CSA 62368-1
  • IEC 62368-1
  • FCC CLASS B
  • CE
  • RoHS Compliant

DIMENSIONS

  • 17.0×3.5×10.0in (W×H×D)
    (43.2×8.9×25.4cm)

WEIGHT

  • 15.4lb (7.0kg) with no drives installed
  • 21.6lbs (9.8kg) with four hard drives

FAN AND DRIVE NOISE

  • Typical: 29 dB(A)

POWER

  • Max consumption: 48W
  • Typical: 43W
  • External power adapter:
    • 2.6×1.4×6.5in (6.6×3.5×16.5cm)
    • 150W with detachable line cord
    • 100-240V, 50-60Hz universal input
    • 12VDC @ 12.5A

STORAGE

  • Four removable 24TB, 18TB, or 12TB hard drives (96TB, 72TB, or 48TB total)
  • 96TB configuration:
    • Stores ~1,600 Kaleidescape high-bitrate 4K movies, ~2,600 HD movies, or ~14,400 SD movies
  • 72TB configuration:
    • Stores ~1,200 Kaleidescape high-bitrate 4K movies, ~1,950 HD movies, ~10,800 SD movies
  • 48TB configuration:
    • Stores ~800 Kaleidescape high-bitrate 4K movies, ~1,300 HD movies, ~7,200 SD movies

RACK MOUNT (sold separately)

  • Rack shelf available for mounting one unit in a 19in rack, 2RU space

DIMENSIONS

  • 7.87×1.52×14.33in (W×H×D)(20.0×3.9×36.4cm)

WEIGHT

  • 7.2lbs (3.3kg)

FAN AND DRIVE NOISE

  • Typical: 25 dB(A)

POWER

  • Max consumption: 29W
  • Typical: 24W
  • External power adapter:
    • 2.6×1.4×6.5in (6.6×3.5×16.5cm)
    • 150W with detachable line cord
    • 100-240V, 50-60Hz universal input
    • 12VDC @ 12.5A

STORAGE

  • One integrated 24TB or 8TB hard drive
  • 24TB configuration:
    • Stores ~350 Kaleidescape high-bitrate 4K movies, ~600 HD movies, or ~3,300 SD movies
  • 8TB configuration:
    • Stores ~130 Kaleidescape high-bitrate 4K movies, ~220 HD movies, or ~1,200 SD movies

RACK MOUNT (sold separately)

  • Rack shelf available for mounting one or two units in a 19in rack, 1RU space
