Epson EB-PQ2220B 3LCD 4K Large Venue Laser Projector with 20,000 Lumens

The world’s smallest and lightest 20,000-lumen 4K projector¹.

The EB-PQ2220B large venue 4K laser projector features the latest Epson^® technology—pioneering an unprecedented level of performance. The world’s smallest and lightest 20,000-lumen 4K projector¹, the energy efficient EB-PQ2220B produces captivating visuals in extraordinary detail. Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2220B delivers stunning 4K resolution on-screen. With a high native contrast ratio and 3-chip 3LCD technology, you will enjoy a realistic display enriched with vibrant colors and deep blacks.

Designed for fixed installation applications and to meet the rigorous demands of live events, the EB-PQ2220B features a filterless cabinet, IP5X-rated hermetically sealed optical and light source unit, and a virtually maintenance-free 20,000-hour laser light source². The projector provides frame interpolation for fast-moving objects, as well as HDR support³ and scene adaptive gamma correction for lifelike images. The EB-PQ2220B pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality⁴, and an optional attachable PixAlign™ camera to streamline multi-projector setups.

• World's smallest and lightest 20,000-lumen 4K projector¹
• 20,000 lumens of equal white and color brightness⁵
• 4K Crystal Motion technology
• Virtually maintenance-free 20,000-hour laser light source²
• High native contrast for a realistic display

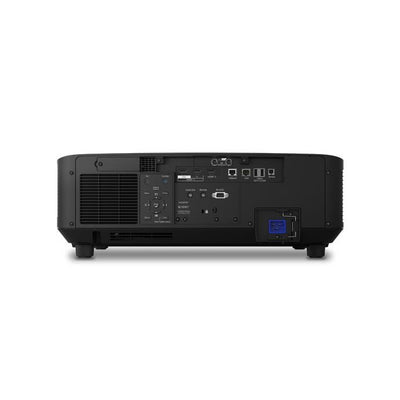

• Enhanced connectivity — HDMI^® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
• Versatile power source options — requires 220 V power for full brightness; can operate at 16,000 lumens from a standard 120 V power source for setup and installation
• Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback
• Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist⁶, stacking assist function⁶, auto color calibration⁷ and screen matching⁷ with or without a connected PC and router
• Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)⁸; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)⁹ from any device with a Web browser
• NFC function built-in⁴ — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app

Eco Features

• RoHS compliant
• End-of-life options available¹⁰
• Epson America, Inc. is a SmartWay^® Transport Partner¹¹

What's In The Box:

• EB-PQ2220B projector
• two cables (200 V – 240 V power cable x 1 and 100 V – 120 V power cable x 1)
• remote control with 2 batteries
• cable cover
• quick reference guide
• warranty sheet

Specifications:

Product Specifications PDF:

DOWNLOAD NOW ►
