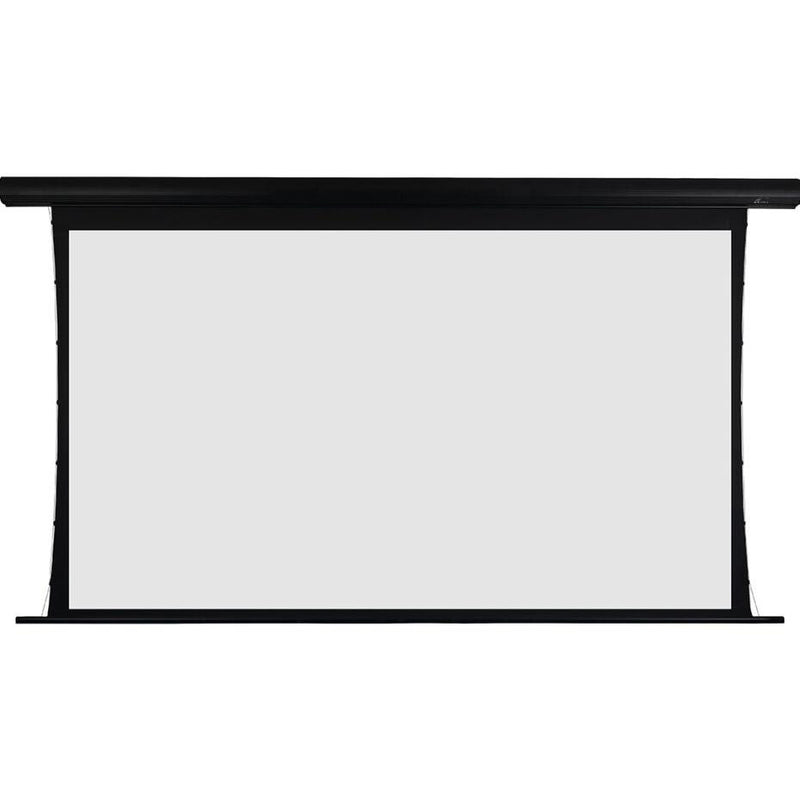

Elite Screens Yard Master Tension Series Projector Screen, 100-inch 16:9, Outdoor/Indoor Electric Motorized

The Yard Master Electric Tension Series is an electric screen with 2-way projection material that is IP33 rated for wind/rain penetration for outdoor applications. The tab-tension design supports a front/rear projection surface with perfect uniform flatness. This allows you to use either a standard, short throw or UST projectors. The WraithVeil® Dual material provides superb image clarity from in-front or behind and its diverse projector compatibility makes it a must for outdoor home or commercial video applications. It is ideal for nighttime movie presentations. The screen comes with a Radio Frequency remote control that doubles as a wireless 12-volt projector trigger that coordinates the screen’s drop and rise with the projector’s power cycle.

Screen Material

• WraithVeil® Dual is a 2-directional front/rear projection material
• 0.8 Gain brightness with a 150° viewing angle on either side
• Designed for outdoor use without compromising its home theater visual appeal
• Standard 4-side black masking borders absorb projector overshoot while enhancing visual contrast (Front side ONLY)
• Compatible with Standard, Short, and Ultra-Short Throw Projectors

• Compatible with Full HD, Ultra HD (4K/8K) and Active 3D projectors.
• Available in diagonal sizes 100”/120”/135” and 150” with a 16:9 aspect ratio

Design and Installation

• Dynamic indoor home theater quality with the durability of an outdoor product
• Ideal for backyards, patios, pool decks, and recreation room installations

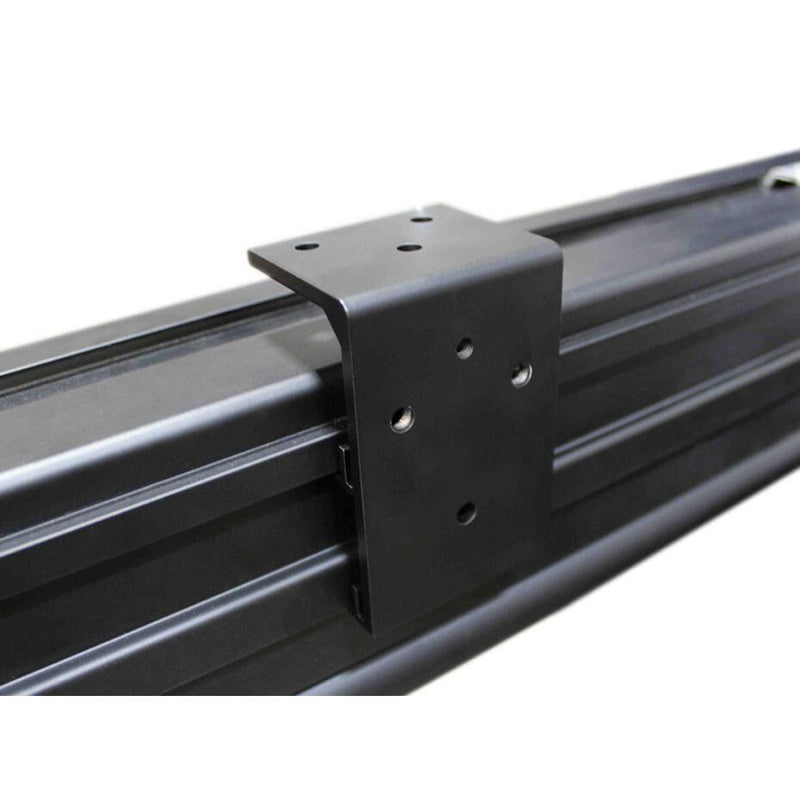

• Rust resistant aluminum floating brackets allow flush wall/ceiling installations to be perfectly centered
• Floating eyebolt construction enables hanging installations

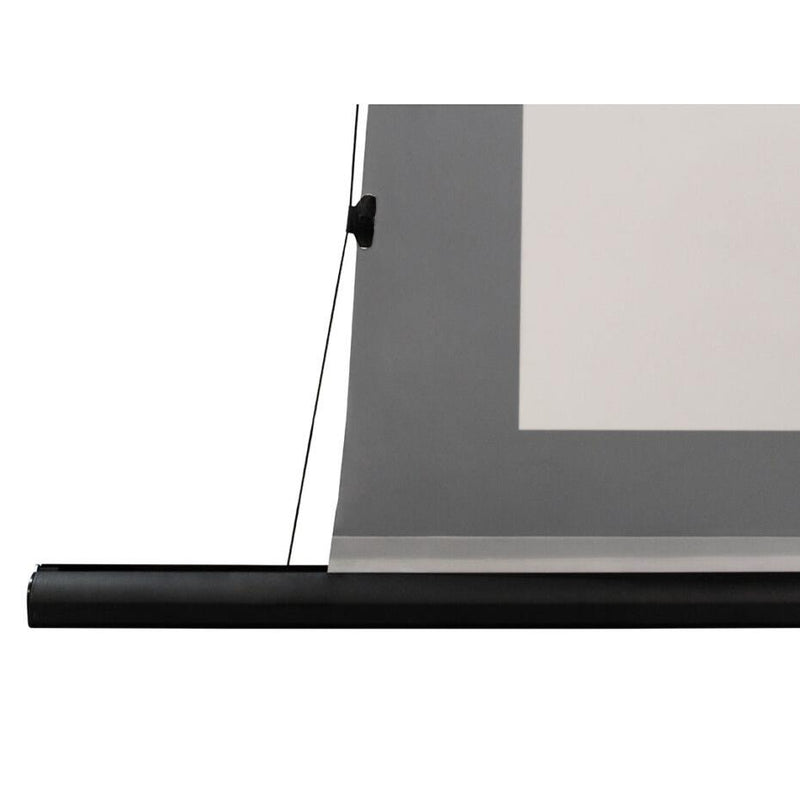

• Tab-tension design provides uniform flatness over the entire screen surface for use with standard, short-throw and UST projectors
• Radio Frequency remote for long range operation without line of sight required
• Wireless 12-volt projector trigger included to synchronize the projector’s power cycle for drop/rise operation of the screen

Quality and Reliability

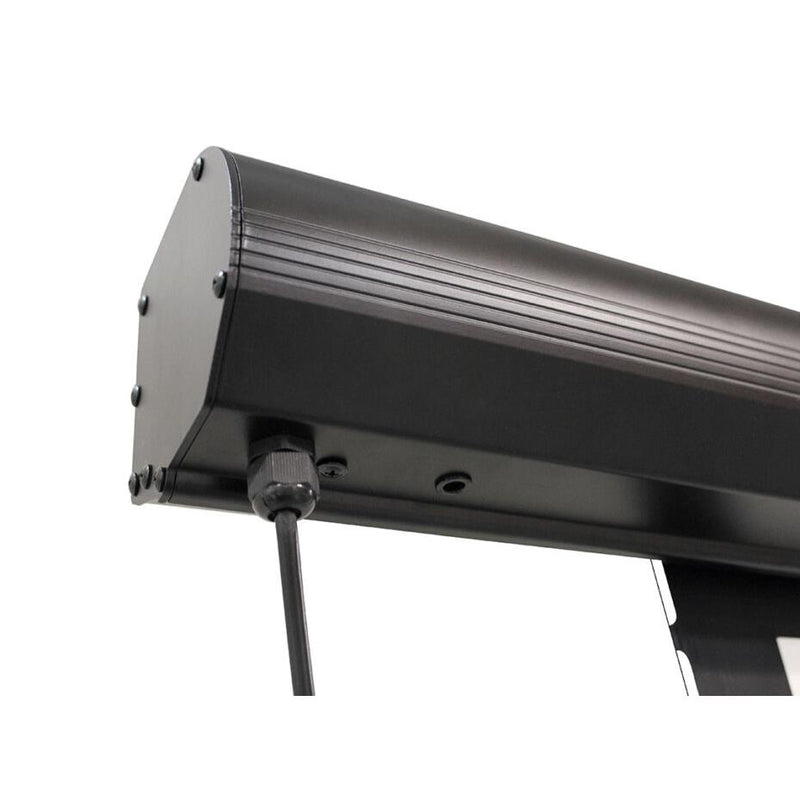

• Rust-proof metal components – housing, roller tube, brackets, and weight bar
• Tubular motor allows swift operation and superior weight tolerance and lifespan
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations


  Dimensions Tables

  • Dimensions Table (PDF)
  • Packaging Dimensions Table (PDF)

  User Guides

  • User Guide – E Type (PDF)
  • User Guide – E Type V2 (PDF) – SN# 203E After

  Comparison Tables

  • Outdoor Screens Comparison (PDF)
  • Outdoor Retractable Comparison (PDF)

  Others

  • WraithVeil Dual Material Sheet (PDF)
  • Brochure (PDF)
  • Product Cut Sheet (PDF)
