Elite ELECTRIC84V Spectrum 84 diag. (50.4x67.2) - Video [4:3] - MaxWhite 1.1 Gain

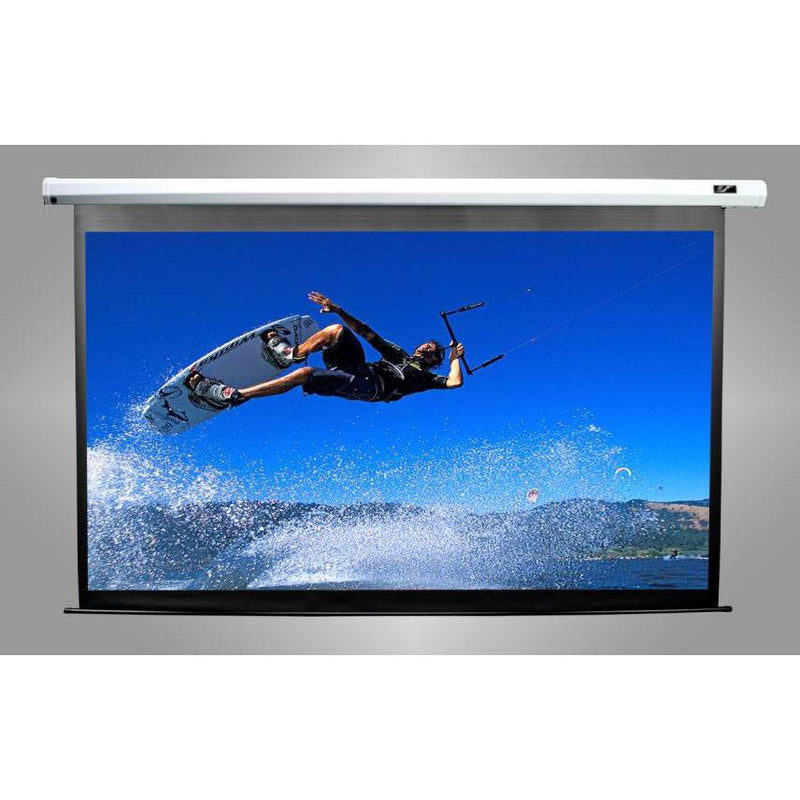

Elite Screens Spectrum Series is a versatile electric motorized screen that fits perfectly in either residential or commercial wall/ceiling applications. Its MaxWhite® 2 1.1 gain projection material displays a bright picture regardless of viewing angle. The material is ISF Certified for accurate color reproduction, color contrast, and black-white dynamic range. Infrared & *Radio Frequency remote controls are included along with a wall box controller and 12-volt trigger capability.

*Included with RC1 Version only



Screen Material

• MaxWhite® 2 matte white front projection material with 1.1 gain
• Wide viewing angle allows viewers to see a clear, bright, and uniform picture from any angle
• Black backing preserves image brightness for a sharper picture and eliminates light penetration from behind to prevent picture degradation
• 4-side masking borders enhance picture contrast and absorb projector overshoot
• Compatible with Full HD, Ultra HD (4K/8K) and Active 3D projectors
• Not compatible with Ultra/Short-throw Projectors
• ISF Certified for accurate color reproduction – An Industry standard for high-fidelity video display systems
• Available in the following diagonal sizes:
  • 84″, 100″, 120″ and 180″ in 4:3 format
  • 84″, 100″, 110″, 125″, 150″ and 180″ in 16:9 format
  • 90″, 106″, 128″ and 142″ in 16:10 format

Design, Installation and Control System

• Durable steel case includes endcaps for wall or ceiling mount options
• Plug & Play design with built-in low voltage control system, no hardwire installation required

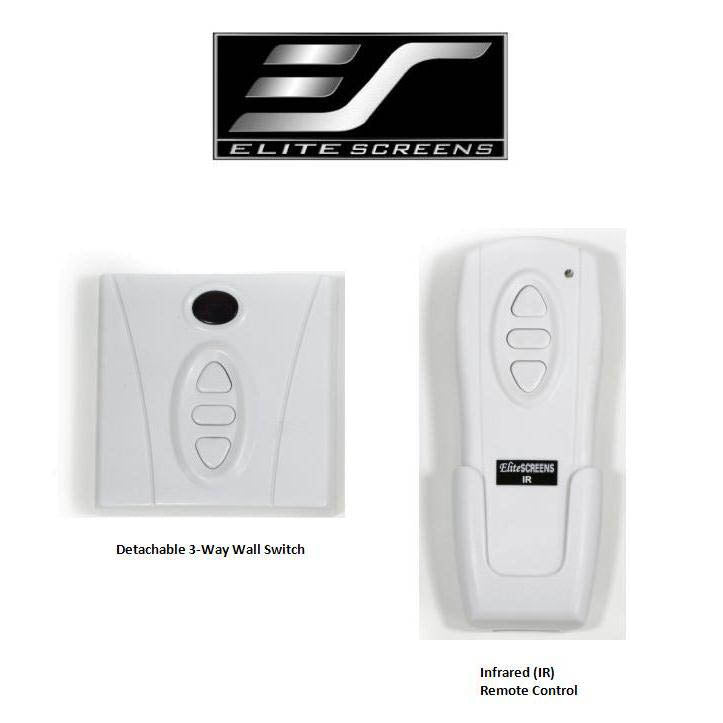

• Includes handheld (IR) Infrared and (RF) Radio Frequency (RC1 Version Only) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
  • Wired 12v trigger capability via wall box controller (RC1 Version Only)
  • Wireless 12v trigger capability via Radio Frequency remote control
• 6″ and 12″ L brackets– sold separately

Quality and Reliability

• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
