Draper Acumen XL V 150" CinemaScope CineFlex White XT700V Projector Screen

Provides maximum flexibility for large applications, Acumen^™ XL V offers an attractive below the ceiling projection screen engineered to meet the demands of heavy use and still look nice in today’s interiors.

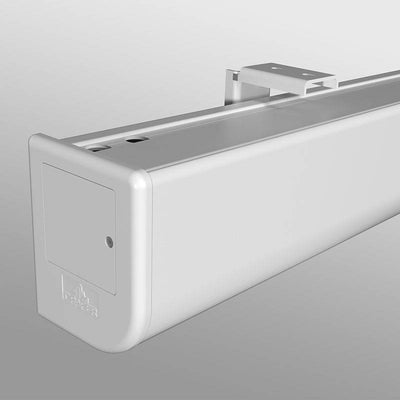

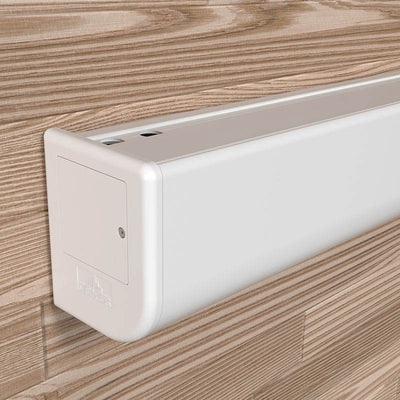

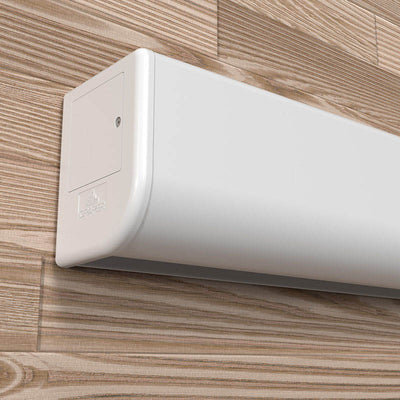

A smooth, curved aluminum housing and white powder coated finish complement any room design.

Floating wall brackets provide this wall- or ceiling-mounted electric screen quick and easy installation.

A tab-tensioned screen provides a perfectly flat viewing surface and better image quality.

RF welded tabs create a more durable seal that eliminates separation and stickiness. Fascia is easily removable if maintenance is required.

A wide variety of motor and control options including quiet and low voltage are available.

Product Specs

• Case dimensions: 9-1/4” h x 8-1/8” d (235 mm x 206 mm). Extruded aluminum housing with white powder coated or optional black finish.

• Maximum image width up to 18’ (5.5 m) wide.

• Full line of Draper^® viewing surfaces including TecVision^® are available for the Acumen^™ XL V.

• Rear projection surfaces available.

• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

• RF welded tabs warranted against separation for five years.

• Streamlined extruded aluminum case finished in white powder coat (standard).

• Fascia removable for easy access to roller and motor for service.

• Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

• Floating mounting brackets included. Ceiling brackets available.

• Custom sizes available.

• Seven-year warranty.
