Draper Acumen XL V 135" CinemaScope Grey XH600V Projector Screen
Item #: Draper-155111FB
$5,853.00
Need Help? Chat With an Expert or Call 888-392-4814
Leaves Warehouse within 4-6 Weeks
Free Shipping
Provides maximum flexibility for large applications, Acumen™ XL V offers an attractive below the ceiling projection screen engineered to meet the demands of heavy use and still look nice in today’s interiors.

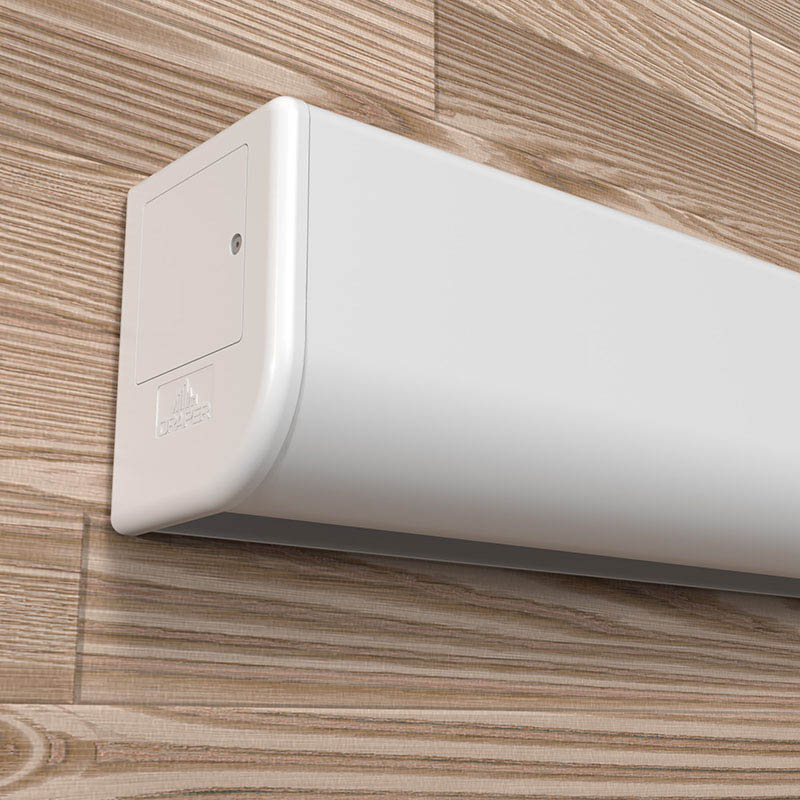

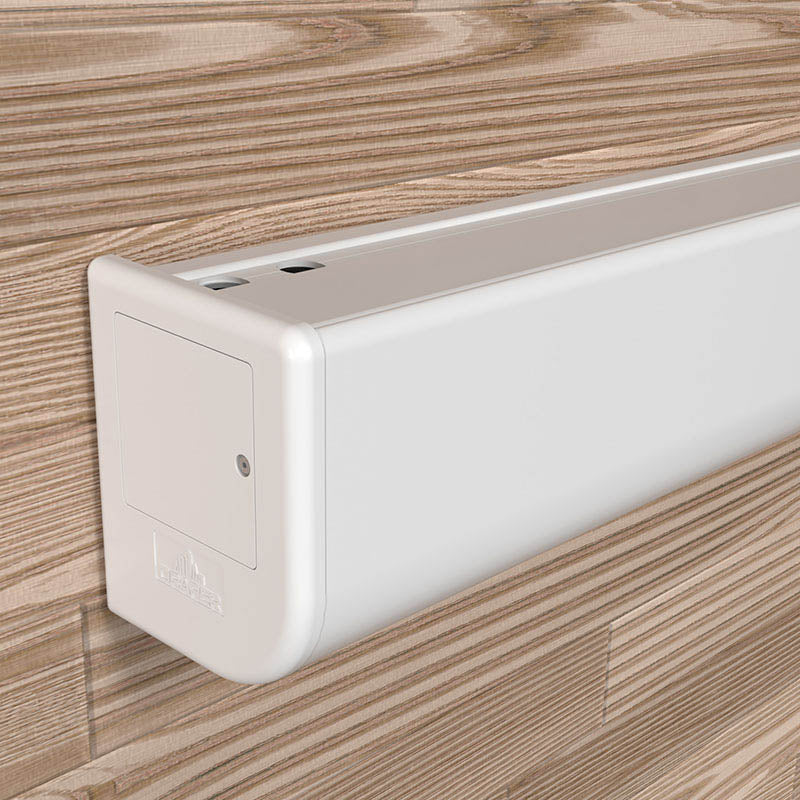

A smooth, curved aluminum housing and white powder coated finish complement any room design.

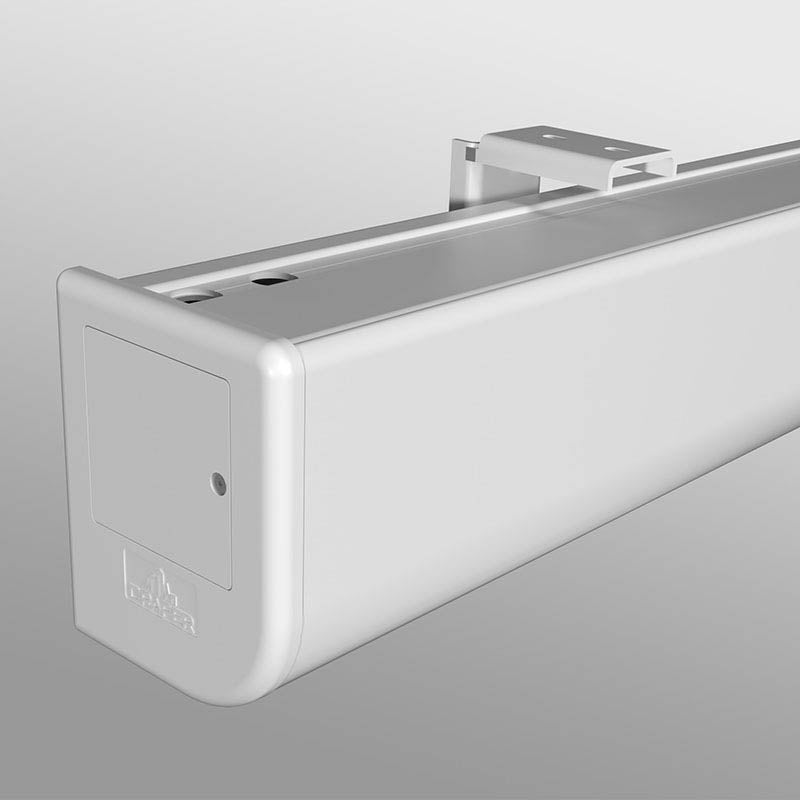

Floating wall brackets provide this wall- or ceiling-mounted electric screen quick and easy installation.
A tab-tensioned screen provides a perfectly flat viewing surface and better image quality.
RF welded tabs create a more durable seal that eliminates separation and stickiness. Fascia is easily removable if maintenance is required.
A wide variety of motor and control options including quiet and low voltage are available.
Product Specs
- Case dimensions: 9-1/4” h x 8-1/8” d (235 mm x 206 mm). Extruded aluminum housing with white powder coated or optional black finish.
- Maximum image width up to 18’ (5.5 m) wide.
- Full line of Draper® viewing surfaces including TecVision® are available for the Acumen™ XL V.
- Rear projection surfaces available.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- RF welded tabs warranted against separation for five years.
- Streamlined extruded aluminum case finished in white powder coat (standard).
- Fascia removable for easy access to roller and motor for service.
- Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
- Floating mounting brackets included. Ceiling brackets available.
- Custom sizes available.
- Seven-year warranty.
Projection Surface
Grey XH600V
Grey front projection surface provides excellent contrast and black reproduction. Intended for use with moderate to high output digital projectors.
Grey color enhances color contrast and black levels in the projected image. Also allows for more ambient light in the audience area than matt white surfaces. Relatively broad viewing cone.
This surface was previously named "HiDef Grey."
This surface is GREENGUARD Children and SchoolsSM certified. Available with black backing and without.
Surface Characteristics
- Front Projection Material.
- Flexible PVC Composition.
- Washable with Mild Soap and Water.
- Flame Retardant.
- Greenguard™ Certified.
- This material does NOT reach half gain.
Surface Material Properties
| Seamless Maximum Size | 12' Height |
| Peak Gain | 0.6 |
| Half Gain | N/A |
| Acoustically Transparent | Yes |
| Front / Rear Projection | Front |
| Flame Resistance | Yes |
Specs
Item #: Draper-155111FB
Manufacturer Part #: 155111FB
