Draper 143015U Ultimate Access/Series V 130 diag. (78x104) - Video [4:3] - 1.0 Gain

ACCESS V ELECTRIC PROJECTION SCREEN

The choice for boardrooms, mid-sized training rooms, classrooms, or home theaters, the tab-tensioned, ceiling-recessed Access V offers a premium electric projection screen. Tab-tensioned screens provide a perfectly flat viewing surface with better image quality. RF welded tabs create a more durable seal that eliminates separation and stickiness. The bottom closure panel provides access to all components for easier service and maintenance. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation of the screen at a later time.

Viewing surfaces available with this model are:

• Matt White XT1000V
• Grey XH600V
• Pure White XT1300V
• CineFlex CH1200V
• CineFlex White XT700V
• ClearSound NanoPerf XT1000V
• ClearSound Perf XT900V

Features

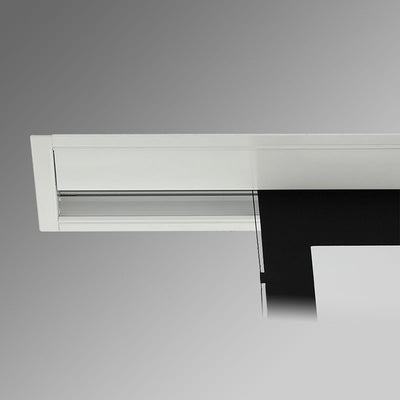

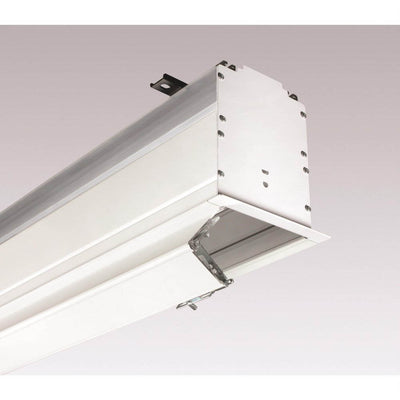

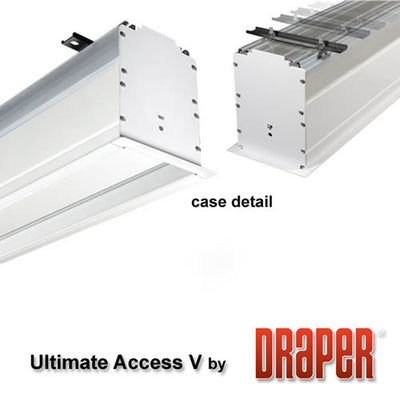

• Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions.

• Maximum image width up to 16' (488 cm) wide, depending on surface selection.

• RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.

• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

• Adjustable or removable hoisting brackets included for easy lifting during installation.

• Sliding brackets on top of the case allow for adjustments for mounting.

• Sliding brackets inside case accommodate different size screens.

• Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

• Quick-connect wiring allows for early installation of the case with the addition of the screen later.

• Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

• Low voltage, video interface or other controls can be built into housing for below ceiling access.

• Custom sizes available.

• White case standard, black available upon request.
