Draper 138004-Silver Nocturne/Series E 73 diag. (36x64) - HDTV [16:9] - 0.8 Gain

NOCTURNE+ E^® ELECTRIC PROJECTION SCREEN

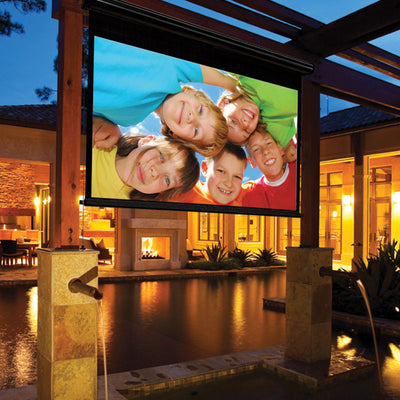

Take your entertainment outdoors with an easy-to-install electric projection screen. A design based on customer input makes the Nocturne+ E ideal for outdoor entertainment on a patio, pool deck, or other outdoor venue. With a broad selection of screen sizes and a headbox engineered to be weather and insect resistant, the Nocturne+ E is a great way to transform any outdoor living space into nighttime entertainment.

Viewing surfaces available with this model are:

Features

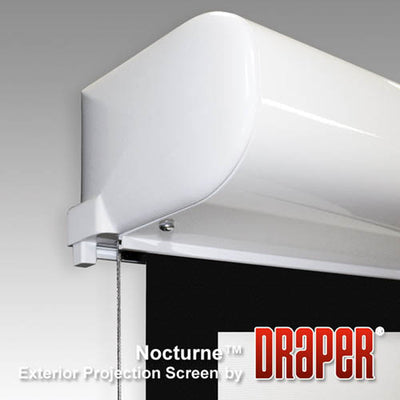

• Product available with square or curved headbox.

• Square headbox dimensions are 3-5/8” deep x 3-5/8" high (92 mm x 92 mm).

• Curved headbox dimensions are 3-5/8” deep x 3-5/8" high (92 mm x 92 mm). Not available with crank operator.

• Maximum image width up to 132" (325 cm) wide, depending on surface selection.

• Floating wall brackets grip the screen securely anywhere along the back of the case for ease of installation.

• Hardware finish choices: silver, white, black, ivory, or charcoal bronze. Custom powder coat colors available.

• Insect and weather resistant aluminum headbox; includes a built-in hinge for ease of installation and service.

• In coastal applications near salt water, some deterioration of the operator and bracket components may occur.

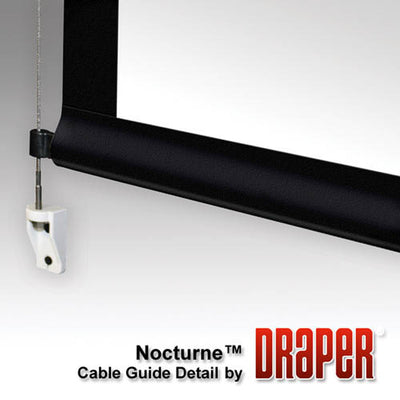

• Cable guides included for secure operation in wind (secures hem bar only, not fabric).

• Weighted hem bar to stabilize viewing surface during operation.

• Projection screens in outdoor spaces should be retracted in windy conditions.

• Quiet motor is standard. RTS motor available.

• Remote control options available.

• Custom sizes available.
