Draper 101056-White Premier 100 diag. (60x80) - Video [4:3] - Matt White XT1000V 1.0 Gain

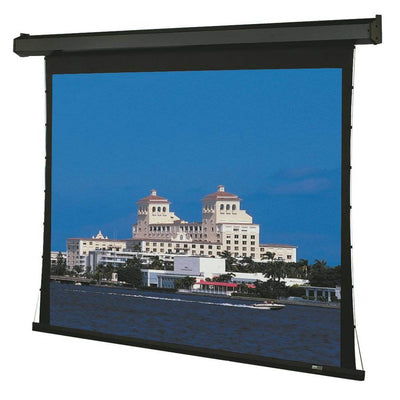

PREMIER ELECTRIC PROJECTION SCREEN

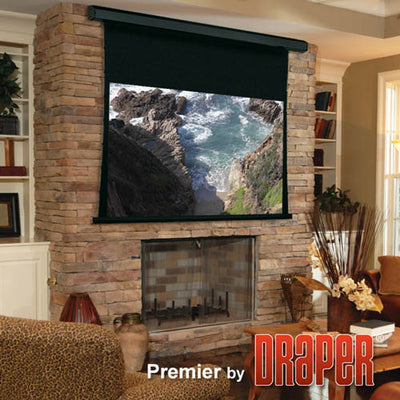

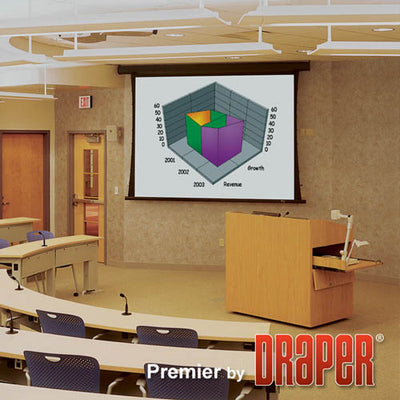

Ideal for conference rooms, classrooms, or home theaters, the economical Premier wall- or ceiling-mounted, electric projection screen offers a tab-tensioned viewing surface. Tab-tensioned screens provide a perfectly flat viewing surface with better image quality. Draper’s RF welded tabs create a more durable seal that eliminates separation and stickiness. Housed in an attractive black pentagonal steel case, the motor-in-roller is insulated to provide the Premier with a smooth, quiet operation.

Viewing surfaces available with this model are:

Features

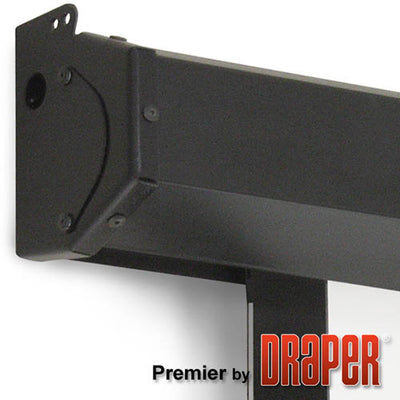

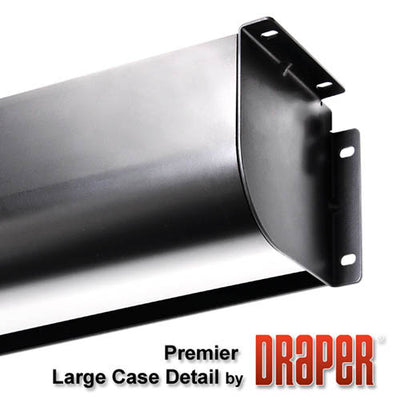

• Premier case dimensions are 5-7/8" high x 5-1/4" deep (15 cm x 13 cm). Optional built-in controls and extra drop may increase case length. Steel case with baked-on black plastisol finish (standard), white available upon request. Includes matching endcaps with universal mounting brackets.

• Maximum image width up to 12’ (366 cm) wide, depending on surface selection.

• For larger sizes, the Premier XL is functionally similar to the Premier and is available in sizes through 16’ (488 cm) wide.

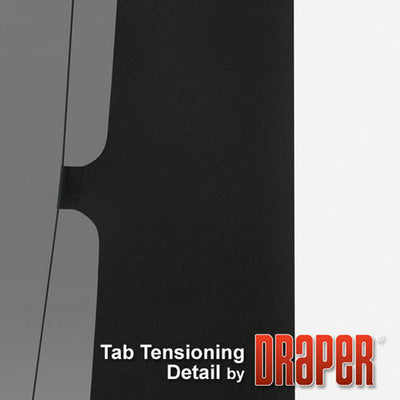

• RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.

• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

• Optional white aluminum ceiling trim kit available for recessed installation. Additional 12" black top drop recommended for ceiling-recessed installation.

• Optional wall- or ceiling-mounting brackets for added flexibility.

• Rear projection surfaces available.

• Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP). Screens over 119" diagonal on 16:9 format on this screen cannot use QLP.

• Includes one 110-120V, 3-position switch (standard). Other control options are available.

• Custom sizes available.
