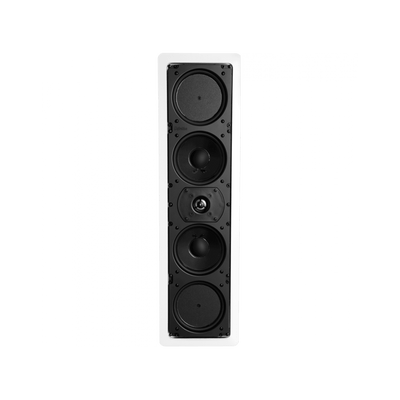

Definitive Technology UIW RLS III Reference In-Ceiling Speaker with Integral Sealed Box
Item #: DT-UIWRLSIII
$699.00
Discontinued
Free Shipping
UIW RLS III
In-Wall Reference Line Source Speaker
Detailed
Presence
From dual 5.25" cast basket drivers
Deep
Bass
From two 5.25" pressure-coupled
low bass radiators
Simple and
Secure
Easy installation in new or
existing construction
Invisible Sound, Uncompromised
Cinematic
Performance
With its high-technology flush-mount enclosure that disappears into the environment, the UIW RLS III delivers uncompromising sound that’s heard, but never seen. It provides thrilling sound with room-filling bass, stunning detail, and theater-reference volume levels that rival the best freestanding speakers without the clutter.
- Invisible Sound...
- Installation...
Reference-Quality Drivers & Radiators
Flagship Loudspeaker Performance
Ultimate In-Wall series speakers are designed with the same driver technologies as our flagship floorstanding speakers, enabling freestanding speaker-level performance from within your ceiling and walls.
1" Aluminum Dome Tweeter
The RLSIII aluminum dome tweeter delivers a clear, precise high frequency response. Their ultralight, rigid construction enables them to play significantly higher frequencies than we can hear, providing effortless, distortion-free highs within and beyond the audible range.
Installation Flexibility
Customize to
your home
Whether new or existing construction, walls or ceilings, residential or commercial, UIW Reference Series loudspeakers feature simple, secure installations. From metal pivoting lock arms to paintable grilles and frames to fully sealed enclosures, Definitive Technology engineers designed speakers that put installation simplicity on equal footing with sound quality.
Fully Enclosed
for powerful sound where you want it
UIW Reference Series loudspeakers are fully enclosed and sealed with dense, acoustically inert, anti-resonant, anti-vibration Medite® wood. With the RLSIII, you’ll hear loud, accurate, uncolored midrange and tight, powerful bass with no buzzing or sound leakage into walls and ceilings.
Overall
| Total Pieces | 1 |
| Included Accessories | • (1) Wall Mounting Template • (1) Paint Mask • (1) Paintable Grille • (1) Self Adhering Foam Gasket |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
| Original Purchaser Only | Yes |
| Carton 1 | 30" (76.2 cm) h x 9.5" (24.13 cm) w x 9" (22.86 cm) d - 16 lbs (7.26 kg) |
IN-WALL SPEAKER
| Qty Included | 1 |
| Availability | US |
| Driver Complement | • (1) 1" (2.54 cm) d (Round) - Tweeter • (2) 5.25" (13.34 cm) d (Round) - Mid/Woofer • (2) 5.25" (13.34 cm) d (Round) - Bass Radiator |
| Weight | 14.5 lbs (6.58 kg) |
| Shape | Rectangle |
| Dimensions | 23.75" (60.33 cm) h x 5.88" (14.94 cm) w |
| Clearance Required for Mounting Dogs (add to each side of cutout) | 0.88" (2.24 cm) |
| Audio Inputs | |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - Gold-Plated |
| Total Frequency Response | 24 Hz → 30,000 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
| A/V Receiver Crossover Settings | Small (40 Hz) |
