Definitive Technology DN12 1500W 12 inch Subwoofer with Dual 12 inch Bass Radiators - Open Box

DN12

Ultra-Performance, 1500W 12" Subwoofer with Dual 12" Bass Radiators

Loaded with custom technologies such as 3XR™ Architecture and Intelligent Phase Control™, the DN12 delivers extraordinary bass into any system.

Reference-level
Performance

For any theater or music system

Loud & Clear

Unique 3XR™ Architecture

Precision Tuning

Groundbreaking phase, volume, frequency,
EQ, and control features.

3XR™ Architecture

More Bass from
the Same Space

The DN12’s unique 3XR Architecture provides triple the bass-producing surface area of a traditional 12” ported subwoofer. This extra surface area moves more air, resulting in massive low end. And because 3XR doesn’t use ports, it also provides crystal-clear sound with no port noise distortion.

• 3XR Architecture
• Pure Impact
• Team Player

3XR™ Architecture
for as much bass as a
ported 15” subwoofer

The DN12’s 3XR Architecture provides triple the bass-producing radiating surface area of a traditional 15” ported subwoofer. This extra surface area moves more air, enabling the DN12 to play as loud and low as a two similarly-sized 18” ported subwoofers. And because 3XR doesn’t use ports, DN12 also provides crystal-clear bass with no port noise distortion.

Learn how it works

Passive Radiators
for louder, lower,
cleaner bass

As the core technology behind Descend’s 3XR Architecure, its passive bass radiators enable the DN12 to play as loud and low as a 15” ported sub without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.

What you get is the best of both worlds: louder, clearer bass than a ported sub from a smaller enclosure than a sealed sub.

Pure Impact

Reference-level Performance

Powered by Class H digital amplification, and with an advanced 56-bit DSP that includes three custom EQ modes, DN12 plays exceptionally impactful bass down to 25Hz.

Custom Class H Digital Amplification
for powerful, clean
performance down to
25Hz

The DN12’s advanced 1500W peak Class H digital amplifier delivers continuous power to cleanly reproduce sustained bass below 25Hz. With real-time monitoring and adjustments to the sliding rail voltage, the DN12 delivers considerably higher power during short, transient peaks such as bass drum kicks and on-screen artillery blasts.

Advanced 56-Bit DSP
for distortion-free
longevity

The advanced 56-bit Digital Signal Processor (DSP) extends and improves the DN12’s bass response. The DSP tightly monitors and controls the woofer system to prevent distortion and woofer damage at ultra-high volumes with a minimum of audible artifacts.

Built-in EQ Modes
for the right sound every time

With three built-in performance EQs modes, the DN12 can be optimized to your room and listening preferences, and adjusted to match whatever you're listening to.

Flat Mode

The DN12’s default setting out of the box, Flat Mode provides the most balanced performance, as determined by our acoustic experts, providing the perfect harmony between low end extension and full spectrum maximum output.

Team Player

Control and
Customization

With breakthrough technologies such as Intelligent Phase Control™, easy settings management with its dedicated remote control, and advanced custom integration capabilities, the DN12 is easily optimized to the specifics of your system.

Intelligent Phase Control™
for flawless system blending

Intelligent Phase Control™ provides a full 360 degrees of customizable phase adjustment, always centered around the settings of the low-pass filter. This provides the ability to tune the subwoofer for minimal group delay between speakers and a flawless blending experience between your speakers and the subwoofer.

Intelligent Phase Control is available in the Descend DN12 and DN15 subwoofers.

Learn how it works

Remote Control with
On-sub LED Display
for adjustments on the fly

Easily adjust the DN12’s volume level, phase, and EQ with its slim remote control. There’s no need to constantly get up to manually change settings or wonder if you’ve gotten them right.

Multiple Subwoofers
for smoother bass
throughout the room

While a single subwoofer can add bass and enhanced realism to any system, it may not provide consistent frequency response throughout the room.

When two or more subwoofers are properly employed throughout the room, sound waves disperse more evenly, flattening the frequency response. The result is smoother bass throughout the room, helping to eliminate boomy locations or dead spots.

Custom Integration
Ready
for complete
controllability

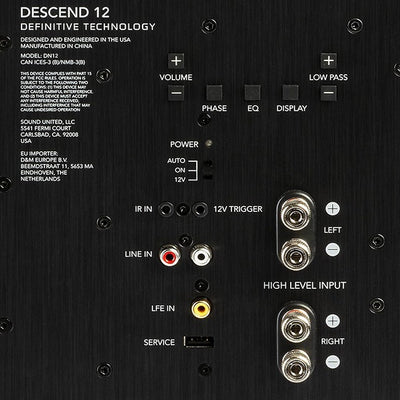

With both 12V input and IR pass-through, you have the ability to pair the subwoofer with most control systems and place the subwoofer wherever you want in the room and still experience full functionality.

Overall

Performance

Inputs

Controls
