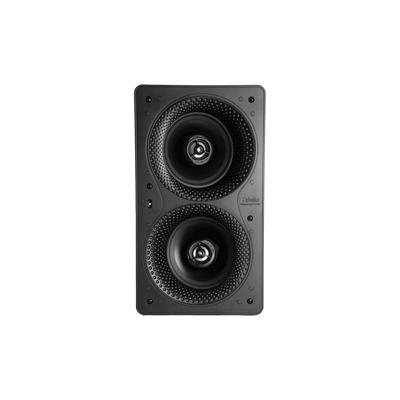

Definitive Technology DI 5.5BPS Rectangular Bipolar In-Wall/In-Ceiling Surround Speaker

DI 5.5LCR

Disappearing™ In-Wall Series Dual 5.25" L/C/R Loudspeaker

Home Theater
In-Wall

Optimized for Left-, Center-,
or Right-channel (LCR) Audio

Room Filling
Sound

Aluminum Dome Tweeter
& Two BDSS Woofers

Tuned to
Your Space

Environmental EQ &
Pivotable Tweeter

Our Best Freestanding Speaker Technologies

Invisible Audio, Astonishing Performance

The culmination of decades of engineering, DI Series Loudspeakers deliver sensational sound quality while virtually disappearing into walls and ceilings with our hidden flange design. Treat yourself to dynamic bass, smooth midrange, and sparkling treble with little impact on your décor.

• Our Best Freestanding...
• Disappearing Design

Environmental EQ
fine-tunes the highs for any space

Adjust the Environmental EQ switch to customize tweeter output for your listening environment. Engage the [+] setting to boost treble in sound-absorbing rooms, or the [–] setting to reduce treble in lively rooms. Leave in the Center position for rooms with average reflectivity.

Pivoting Tweeter
for controlled directivity

The ultralight, rigid construction of DI Series aluminum dome tweeters enables them to play significantly higher frequencies than we can hear, enabling optimum linearity within the range of human hearing. The DI 5.5LCR features a pivotable tweeter for clean, sparkling, distortion-free highs, with dispersion customizable to your space.

Exclusive BDSS™
midrange/bass woofers

For more bass in less space while keeping midrange detailed and responsive, the DI 5.5LCR’s two 5.25” mid/bass woofers leverage our exclusive Balanced Double Surround System (BDSS™). The double butyl rubber surrounds produce a much greater cone excursion than other comparably sized drivers. And the DI 5.5LCR’s rigid PolyStone™ basket provides a sturdy launching pad for the powerful excursion.

With BDSS drivers, you’ll enjoy superior midrange and midbass dynamics and detail in packages sized for stealth.

Acoustic Wizardry
for the details that make the difference

The DI 5.5LCR features a sophisticated adjustable crossover network with custom, high-precision components for superior sonic purity.

Surrounding the BDSS drivers are a specially-contoured AeroRing™ that precisely distributes natural, well-balanced sound by minimizing diffraction.

Disappearing Design

Installs Easily and Reliably

Whether new or existing construction, walls or ceilings, residential or commercial, DI Series speakers offer simple, stealthy installations. Our engineers have extensive custom installation experience, and have felt your pain when working with hastily-engineered products. From pivoting lock arms to paintable grilles and frames to sure-grip magnetic grille fasteners, DI Series speakers are installer-friendly to the extreme.

All the Stealth
none of the complexity

Hidden flange architecture is fantastic for décor, because the nearly border-free design virtually disappears into walls and ceilings. What isn’t fantastic is the typical installation complexity. However, DI Series hidden flange designs are as easy to install as traditional flanged flush-mount speakers, and don’t require custom Sheetrock or spackle skills to install the practically invisible look.

Paintable Magnetic Grille
for the final custom touch

All DI Series speaker grilles and grille frames are paintable, with easy step-by-step instructions. Once you have your perfect look, powerful neodymium magnets attach the grilles to the speakers for a secure, tool-free finish.

New Construction
installations made easy

For new construction projects, streamline your DI Series speaker installations with the optional Pre-Construction Rough-in Brackets. Easily attach the bracket to studs or joists before the drywall goes up, using your choice of nails, drywall screws, or construction staples (not included). Adjustable arms allow for unusual stud or joist locations.

A Disappearing Act
for every installation

Whatever the setting—residential or commercial, music room or home theater—DI Series has designed a disappearing act ready to entertain you. From round or square ceiling speakers, to in-wall speakers, to Bipolar surround speakers, to in-wall subwoofers, DI Series is ready to rock a venue of any size—invisibly. Mix and match as you please, confident that you’ll always enjoy Definitive Technology's legendary speaker voicing.

Overall

IN-WALL SPEAKER

Product Documentation

DI LCR Manual_090309_readDI LCR and BPS product info sheet
