Home Cinema 5050UB 4K PRO-UHD Projector with Advanced 3-Chip Design and HDR10
The ultimate 4K experience for the DIY home theater.
The Epson® Home Cinema 5050UB 4K PRO-UHD1 projector delivers an amazing 4K home theater experience for the DIY enthusiast. Capable of displaying an astonishing 2,600 lumens for both color and white brightness3 – along with proprietary processors for resolution enhancement, color and image processing – the Home Cinema 5050UB produces incredible brightness, color accuracy and image detail to faithfully display all your favorite content the way it was meant to be seen. If you’re looking for an amazing 4K projection experience to power your new home theater build – this could be it. Now that’s Projection Perfected.
4K PRO-UHD1 Projection TechnologyA new type of 4K home theater experience utilizing advanced processing for resolution enhancement, color and image processing – resulting in an exceptional 4K home theater experience
True 3-Chip Projector DesignAdvanced 3LCD technology displays 100% of the RGB color signal for every frame. This allows for an outstanding color gamut while maintaining excellent brightness, without any “rainbowing” or “color brightness” issues some may see with other projector technologies
Pixel-Shift ProcessorAdvanced pixel-shifting processor precisely controls three high-definition LCD chips to parallel process millions of pixels of information. This new type of resolution enhancement technology
1results in an exceptionally sharp 4K visual experience
HDR ProcessorFull 10-bit HDR
2 color processing accepting 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance
Digital Imaging ProcessorRealtime 12-bit analog-to-digital video processing for smooth tonal transitions, while helping to eliminate banding, blocking and other compression artifacts from the final visual performance. This powerful processor faithfully reproduces the source material the way it was intended to be shown
Outstanding BrightnessCapable of displaying 4K content at an incredible 2,600 lumens for both color and white brightness
3. This not only provides for a wider performance envelope but allows for an exceptional HDR performance
- Epson UltraBlack™ Technology — Epson created a Proprietary Compensation Filter that controls the polarization of light itself. This allows Epson to suppress any stray light within the signal, producing an outstanding Dynamic Contrast ratio of 1,000,000:1.
- Precision HDR Adjustment — Realtime HDR curve adjustment allowing for 16-steps of control to fine-tune the HDR performance – regardless of the content being displayed.
- Extreme Color Gamut — One of the first commercially available home theater projectors capable of displaying the full three-dimensional DCI-P34 color space. This extreme color performance is 50% wider than typical 1-Chip Rec. 709 projectors and allows for a truly professional-level of color accuracy.
- Epson Precision Lens Technology — Designed for zero-light-leakage, all Epson Precision Lenses utilize a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity.
Eco Features
- RoHS compliant
- Recyclable product5
- Epson America, Inc. is a SmartWay™ Transport Partner6
Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment
What's In The Box:
- Home Cinema 5050UB Projector
- Power cord
- Two HDMI cable clamps
- Remote control with (2) AA batteries
- Quick Setup Guide
Specifications Projector:
Projection System: Epson 3LCD, 3-chip optical engine
Projection Method: Front / Rear / Ceiling mount
Driving Method: Poly-silicon TFT Active Matrix, 0.74"-wide panel
Color Brightness - Color Light Output: 2600 lumens2
White Brightness - White Light Output: 2600 lumens2
Aspect Ratio: 16:9 widescreen (4:3 resize,16:10 resize)
Compatible with 4:3 with Normal, Full or Zoom Modes
Resolution: 4K Enhancement1 (1920 x 1080 x 2)
Maximum Resolution: 4096 x 2160
Supported Resolution: 3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/i
Lamp Type: 250 W UHE
Lamp Life: Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)7
Size - projected distance: 50" – 300" (Zoom: Wide and Zoom: Tele)
Keystone Correction: Vertical: ±30 degrees (Manual)
Contrast Ratio: Up to 1,000,000:1, Auto Iris on
White Balance: 8-point adjustment
Color Processing: Full 10-bit (partial 12-bit)
Color Reproduction: Full-color (up to 1.07 billion colors)
General:
Operating Temperature: 41 ° to 95 °F (5 ° to 35 °C)
Weight: 24.7 lb
Security: Kensington Security Lock Port
Projection Lens:
Type: Powered focus/optical zoom/lens position
F-number: 2.0 – 3.0
Focal Length: 22.5 mm – 46.7 mm
Zoom Ratio: 1.0 – 2.1
Throw Ratio Range: 1.35 – 2.84
Lens Shift:
- Vertical: ±96.3(H center, powered)
- Horizontal: ±47.1(V center, powered)
Lens Cover:Powered, Slide Lens Shutter
Other Home Projector:
Cinema Filter: Automatically adjusts to color mode;
(On: Cinema, Digital Cinema
Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema)
Auto Iris: Automatically adjusts to video source;
Off/On: High-speed or Normal, 2D and 3D mode
Super Resolution: 2D and 3D
Frame Interpolation: 1080p @24 HzTerminal Inputs:
- 2x HDMI (HDCP 2.2)
- 1x USB Type A (for optical HDMI cable 300 mA max. power supply only)
- 1x USB (for wireless and firmware)
- 1x Mini USB (service only)
- 1x LAN (RJ45)
- 1x Computer/D-sub 15 pin
- 1x RS-232c
- Trigger out 12 V DC, 200 mA maximum
Computer Compatibility:PC, Mac®
Parental Controls:
Power Button Lock:Hinders projector from being turned on without parental supervision
Projector Details:
Display Performance: 4K/UHD @ 60 Hz compatible, HDR103, 3-dimensional DCI-P3 color Gamut4, 4Ke1, 1080p; HD, 2D, 3D
Color Modes:
- 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema
- 3D: Dynamic, Cinema
Input Signal:
- Composite: 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K
- HDMI: TMDS
Fan Noise: 20 dB – 31 dB
Projector Dimensions:
Including feet:
20.5" x 17.7" x 7.6" (W x D x H)
Remote Control:
Features: Front and rear directional
Operating Distance: 32 feet (10 meters)
Operating Angle:
Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees
Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 – + 70 degrees
Power:
Power Consumption:
ECO Mode: 283 W; Normal Mode: 373 W

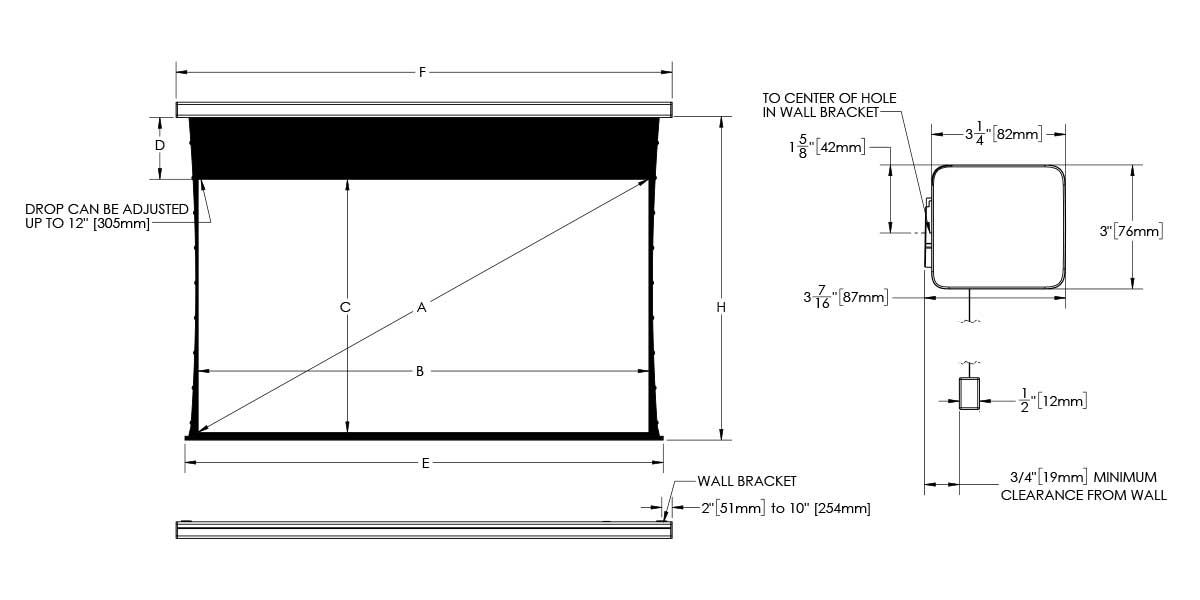

small cassette. big screen.
We fit a 160-inch (334mm) motorized screen in a cassette just under 4.75-inches (121mm). Solo Pro 2 is the smallest motorized screen family on the planet.
motor
Lithium Rechargeable RTS (RF)
24v Dry Contact
24v 485 2-way
24v RTS (RF)
sizes
Max: 160″ (4064mm)
Available in 1-inch increments. All sizes are measured diagonally. Some materials may be limited in size. All dimensions are listed as seamless.
color options
White | Warm White | Dark Gray | Char Brown | Taupe | Black | Teal | Slate Blue | Clear Anodized | Ferrari Red | Blue | Orange
installation | adjustment
Cassette to be installed by mounting to any SOLO or approved third-party accessories.
accessories
standard accessories
(2) Sets of Quick Release Brackets | (1) SOLO Remote | (1) Charging Cable (with Lithium motor option)
optional accessories
Quick Release Bracket / Universal Locking Bracket | Solo Connect | Solo Remote | Charging Cable | MyLink (US Only)
